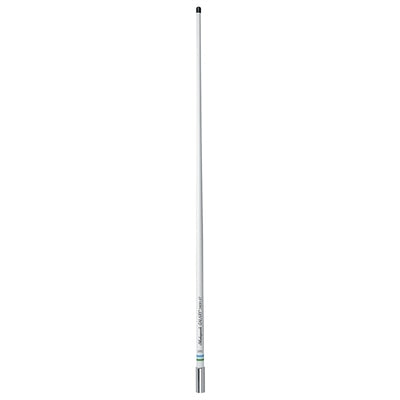

SHAKESPEARE / Galaxy 5400-XT Little Giant™ VHF Marine Antenna (5400-XT) 4' 3 DB VHF FG ANTENNA

• 4' VHF Marine Band 3dB Gain.
• Center-fed 1/2 wave coaxial sleeve.
• Idea on T-tops, hardtops and other positions aloft, where it can deliver maximum range.
• Galaxy white finish with brass and copper elements.
• Stainless steel ferrule with 1"-14 threads.
• Overall length: 4'. One section.
• Includes: 20' RG-8/X cable and a PL-259 connector.
• Mounting type: Style 4187 or 5187 Ratchet Mounts.
• 606453 includes center pin solderless connector.

The compact Galaxy® 5400-XT is an outstanding, general purpose 4' antenna of heavy duty construction for general purpose communications. Its at home on T-tops, hard-tops, and other positions aloft, where its small size can deliver maximum range.

Features:

• Center-fed 1/2 wave coaxial sleeve
• Brass and copper elements for maximum range
• Stainless steel ferrule with standard 1"-14 thread
• Includes 20' RG-8/X cable and a PL-259 connector
• Suggested mount: Shakespeare Style 4187 Ratchet Mount
• One section
• Shakespeare Limited Warranty: 5 years
• Includes FME Cables

Technical Specifications:

• Frequency: VHF Marine Band
• Bandwidth: 5 MHz within 2.0:1 VSWR
• SWR: Nominally 1.5:1 at 156.8 MHz
• Gain: 3 dB
• Max Input (Watts): 50 watts
• Height (feet): 4

DMI Code: 606939

MFG # 5400-XT
