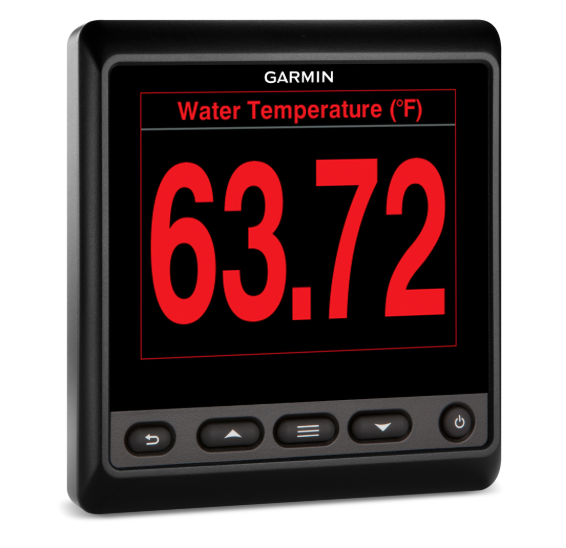

Garmin GMI™ 20 Marine Instrument Display 010-01140-00

Perfectly Designed for Power & Sail Vessels

The GMI 20 digital marine instrument display is perfectly designed for both power and sail vessels. Designed to clearly show depth, speed, wind and 100+ marine and vessel parameters, its large, bright 4" color display with extra large digits is easy to read at a distance and 170 degree viewing angle.

A glass-bonded finish lens prevents fogging and increases contrast. Daylight readability is enhanced with a high contrast color scheme. For enhanced night visibility, you have a choice of red/black, green/black or the normal night mode color scheme along with a dimmer control. Screens can be set to auto-scroll, cycling between pages automatically without your having to do a thing. This is especially advantageous to sailors as it allows you to install the unit(s) in a greater variety of locations on the vessel. Default profiles can be customized for powerboat, sailboat, fishing, engine/fuel, plus several other user-specified profiles. Power is supplied by the NMEA 2000® network.

In addition, the GMI 20 also features a dedicated race timer that counts down and counts up, with an internal beeper. Included are 2 trim snap piece cover options which allow you to match the GMI 20 with the GPSMAP® 500/700 series, GPSMAP 8000 Glass Helm series or legacy Garmin chartplotters.

Features:

• Marine instrument display clearly shows depth, speed, wind and 100+ marine and vessel parameters
• Large, bright 4" color glass-bonded lens display with anti-glare finish
• Easy to read from a distance and 170 degree viewing angle
• Enhanced night time readability with backlight dimmer and full color or red/black or green/black color schemes
• Enhanced daylight readability with new high contrast color option

Specifications:

• Dimensions without sun cover (HxWxD): 110 x 115 x 30 mm (4.33" x 4.53" x 1.18")
• Dimensions with sun cover (HxWxD): 115 x 120 x 35.5 mm (4.53" x 4.72" x 1.40")
• Weight without sun cover: 247 g (8.71 oz)
• Weight with sun cover: 283 g (9.98 oz)
• Temperature range: From 5x to 158x F (from -15x to 70x C)
• Compass-safe distance: 209 mm (8.25")
• Case material: Polycarbonate, waterproof to IPX7
• Power usage: 2.5 W max
• Unit max. voltage: 32 Vdc
• NMEA 2000r input voltage: 9-16 Vdc
• NMEA 2000 load equivalency number (LEN): 6 (300 mA at 9 Vdc)

In The box

• GMI™ 20*
• Black trim piece snap cover
• Protective cover
• Flush mount gasket and hardware
• NMEA 2000® T-connector
• NMEA 2000 drop cable
• Documentation
